LED Wall Calculator
Plan your LED wall setup. Pick a panel, set your wall size, and get real-time dimensions, resolution, weight, power, processor, and viewing-distance calculations.
Options

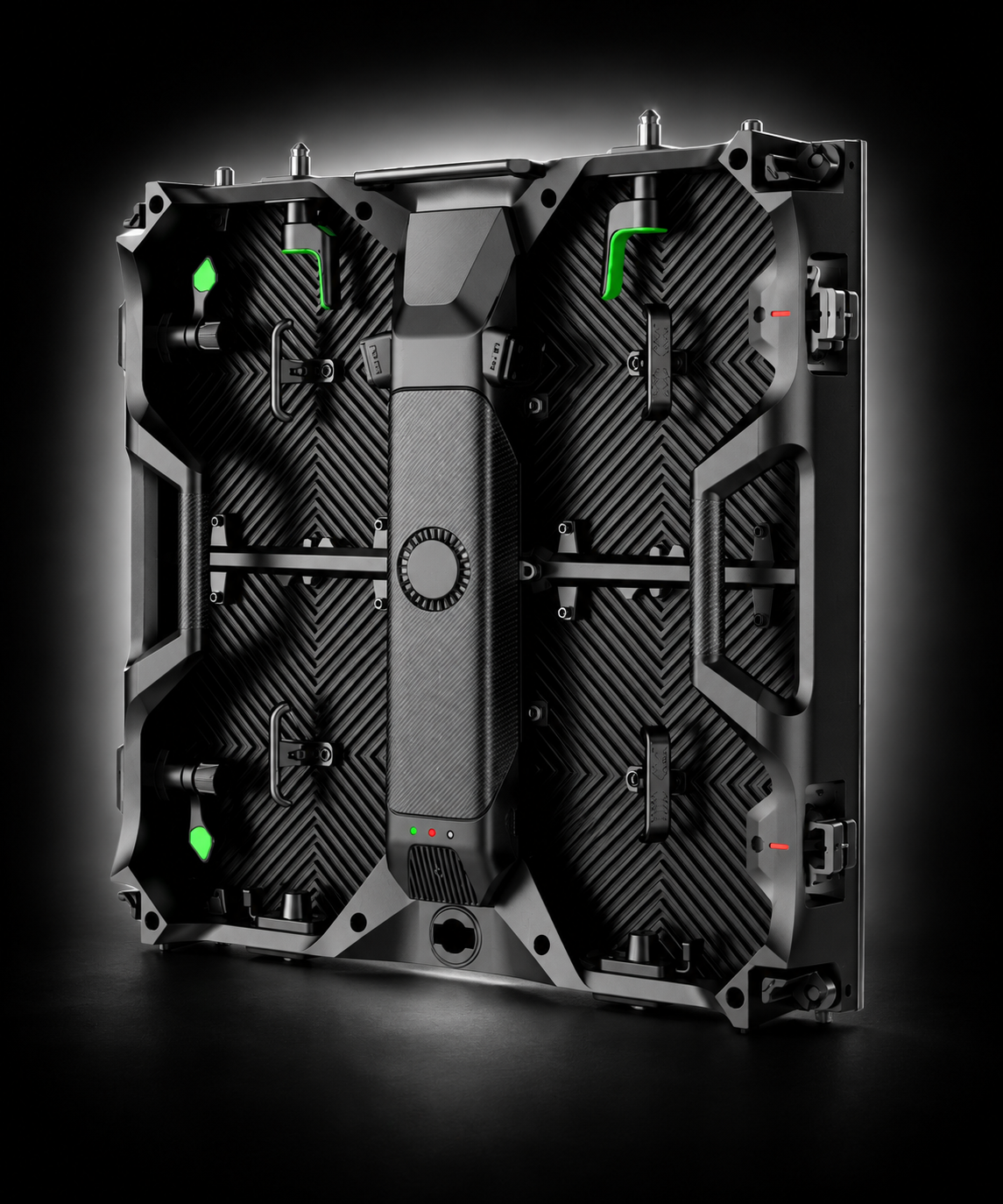

Absen PL2.5 Pro2.5mm pitch · 500×500mm cabinet
Pitch2.5 mm
Tile Size500×500 mm
Pixels / Tile200×200
Weight / Tile25.4 lbs
Max Power / Tile130 W
Proposed Wall Size (FT)
tiles
16.4 ft
tiles
8.2 ft
10 × 5 tiles · 50 total cabinets
Calculated Output
Wall Size
16.4 × 8.2ft
50 tiles
Resolution
2,000 × 1,000px
2,000,000 total pixels
Weight (Total)
1,270lbs
@ 25.4 lbs/tile
Electrical
6,500W
59.1 A @ 110V
Processors (Min)
1HD
1 × 4K (3840×2160)
Viewing Distance
12.3ft
Optimal: 28.3 ft
Estimates for general planning only. Confirm exact weights, power, and rigging with manufacturer manuals and a Live Pros producer. Power figures are max draw; actual draw varies with content and brightness.
